The OT-H202 is a professional-grade home hyperbaric chamber built for those pursuing long-term health benefits. Occupying a footprint of just 2.6 square meters, it delivers a stable, high-concentration hyperbaric oxygen experience at pressures up to 1.5 ATA.
Maximum Operating Pressure
Inhaled Oxygen Concentration
Plasma Dissolved Oxygen Increase
Plasma dissolved oxygen: approx. 2.7～2.9 mL O₂/dL, compared with approx. 0.3 mL O₂/dL under normal air environment.
Two 10-inch full-color touchscreens inside and outside the chamber serve as the control center, with synchronized internal and external controls, allowing a single user to manage the entire process independently.
The unit is fully assembled at the factory—no self-assembly required. Once it is installed and secured in place, you simply connect the integrated oxygen source to begin your hyperbaric oxygen experience.
None of the safety components rely on electricity. In emergencies such as power outages or malfunctions, they activate automatically and smoothly to keep you safe.
An optional Built-In Breathing System (BIBS) precisely delivers high-concentration oxygen while venting carbon dioxide, making every breath purer.
The OT-H202 is a hyperbaric chamber that lets you move freely, rather than a container that confines your posture. You can enjoy a 60–90 minute hyperbaric oxygen session in comfort and ease.
Standing 190 cm tall and 120 cm wide, the OT-H202 comes equipped with an ergonomic leather sofa featuring an adjustable footrest, accommodating users of all body types to sit, lie down, stretch out, and use electronic devices or read books.
Fitted with an independent water-cooled air conditioner to keep the perceived temperature cool, paired with a diagonal air circulation system flowing at 120 L/min to continuously refresh and circulate the air—so you don’t have to endure the entire session drenched in sweat.
Large viewing windows positioned at horizontal eye level on the chamber door and side walls let in natural light while keeping you visually connected to the familiar space outside, greatly easing the tension and unease that enclosed spaces can bring.
The interior and sofa of the OT-H202 are wrapped in non-porous, hypoallergenic leather that repels sweat and prevents odors, and it has been treated for static elimination to remove the safety hazard of static sparks.
The included oxygen source features a built-in silencing design that reduces noise at the source, and combined with the insulation of the thick chamber body made from Q235 carbon steel, the noise perceptible inside is below 50 decibels—quieter than natural ambient sound.
The OT-H202 employs a digital intelligent control system that drives advanced functions through simple operation, enabling every family member, from the elderly to children, to master it quickly.
The system features an ultra-minimalist, high-contrast interface with no layers of nested submenus, greatly lowering the learning curve.
Internal and external panels sync in real time. One person can operate independently, while accompanying family can monitor the chamber and assist.
An independent pressure sensor captures pressure data in real time rather than estimating it, bringing the pressure reading accuracy to ±0.01 ATA.
The OT-H202 is integrally welded from high-tensile Q235 carbon steel, so it will not expand, deform, or emit creaking noises even at full pressure of 1.5 ATA.
Abandoning electrically controlled sliding doors, it adopts a hinged door supported by heavy-duty mechanical hinges together with a pressure-locking design—the higher the pressure inside the chamber, the more tightly the sealing ring presses against the door frame.
The lighting, control panels, sensors, and other components inside the OT-H202 chamber all run on 24V low-voltage power to guard against the risk of electrical sparks.
A line of safety defense must work reliably at the critical moment, which is why the OT-H202 is equipped with four purely mechanical, power-free safety devices both inside and outside the chamber, relying on pure physical structures to carry out protective actions at the moment of a sudden power outage or malfunction.

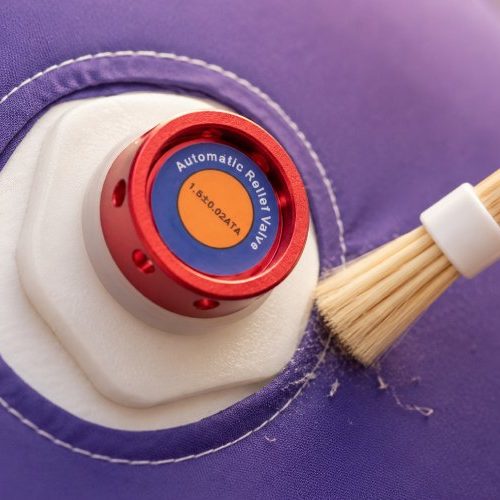

A precisely tuned spring-loaded mechanical safety valve that automatically springs open to release pressure once it exceeds the set value, stabilizing the pressure.

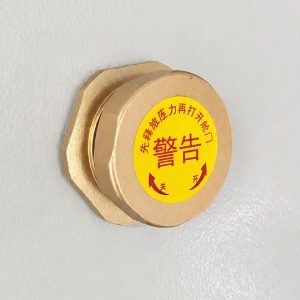

A non-electric, hand-turned relief valve that gives you free control over the chamber pressure and the speed of depressurization.
A high-flow, pull-type physical valve that can be manually opened in emergencies for rapid depressurization within 30–60 seconds.
Pointer-type brass Bourdon-tube mechanical pressure gauges are fitted both inside and outside, providing genuine, intuitive pressure readings unaffected by electricity.
The principle of a hyperbaric chamber is to create a high-pressure environment that continuously supplies your body with high-concentration oxygen. Under these conditions, oxygen can dissolve directly into the blood and bodily fluids rather than relying only on red blood cells for transport, bringing your body a range of benefits.
Human aging is closely linked to the shortening of cellular “telomeres” and the accumulation of “senescent zombie cells.” Under 1.5 ATA micro-pressure, high-concentration oxygen can pass through damaged blood vessel walls to reach the dermis and deeper tissues, stimulating stem cell growth and helping clear inactive senescent cells, thereby slowing the aging process.
At 1.5 ATA, a large amount of dissolved oxygen enters the cerebrospinal fluid. When the brain senses sufficient oxygen, it suppresses the overactive sympathetic nervous system and allows the parasympathetic nervous system to take the lead, relaxing tense nerves and muscles, calming the mind, and improving sleep.
During hyperbaric oxygen therapy, oxygen crosses the blood-brain barrier under pressure to nourish brain cells and support neuronal ATP production. High-concentration dissolved oxygen also improves cerebral microcirculation, helping remove metabolic waste such as neurotoxins and lactic acid and restoring mental vitality.
Lactic acid accumulated after exercise is broken down through oxidation. In a hyperbaric chamber, increased dissolved oxygen accelerates this process, helping the body recover faster and reducing the impact on the next day’s training.
Oxygen acts as a special kind of “fuel” for the body. When dissolved oxygen enters cells under pressure, mitochondria generate ATP through aerobic metabolism, helping restore energy. Oxygen delivered to other organs also supports their metabolic activity.
White blood cells and macrophages require several times more oxygen when engulfing and eliminating bacteria and viruses. Regular hyperbaric oxygen therapy provides these immune cells with ample “ammunition,” strengthening the body’s natural ability to defend against external threats.
Oxyboss owns its own factory and complete production line, so you gain source pricing free from the markups of layer upon layer of middlemen.
The entire Oxyboss product line is CE certified and complies with the ISO 9001 and ISO 13485 standards, allowing smooth entry across borders and letting you place it in your home with peace of mind.
In addition to purchasing the standard model, you can customize the chamber color, appearance, interior, operating system language, and certain configuration parameters according to your preferences.
We have mature export packaging and international logistics experience, and offer door-to-door delivery. We have already exported to 130+ countries and regions worldwide, with zero logistics-caused damage to date.
Join Oxyboss and experience the surprises and changes that a hyperbaric oxygen chamber can bring!
The OT-H202 is delivered into your home as a fully assembled unit—no manual assembly required on your part. Once it is installed and secured in place, simply connect the oxygen source and power supply to start using it. The OT-H202 occupies about 2.6 square meters, distributing the 900 kg chamber weight evenly to 340 kg per square meter—equivalent to three adults standing side by side. As a result, this hyperbaric chamber can be safely and stably installed in the vast majority of modern buildings.
The main body of the chamber is made from Q235 carbon steel, with a sturdy pressure-bearing structure and excellent fatigue resistance. Under normal home-use frequency, the main structure typically has a service life of over 10 years. It should be noted that any equipment has wear-prone parts—such as the oxygen concentrator filter, sealing strips, and some valve seals. These are standard replaceable parts; simply replace them at the recommended intervals. The cost is low and replacement is simple. As long as routine maintenance is carried out, the entire unit can serve reliably for many years.
The vast majority of routine maintenance you can do yourself, including: regularly cleaning and wiping the interior, periodically replacing the oxygen concentrator filter, visually inspecting the door seal and sealing strips, and keeping an everyday eye on the mechanical pressure gauge reading. We provide clear illustrated and video guides for all of these operations. Only when it comes to the inspection or replacement of internal professional components do we recommend doing so under our remote technical guidance, or arranging for professional after-sales service. Overall, the maintenance threshold for the OT-H202 is very low, so "caring for the equipment" will never become a burden.
Oxyboss adheres to the industry's extremely stringent 7×24-hour (168-hour) full factory inspection system. During this period, a comprehensive quality inspection is completed, including pressure-holding tests, sealing tests, safety-response tests, and oxygen-source electrical tests—intercepting any minor fault or hidden risk within the factory gates. Every unit has a corresponding inspection record, fully traceable throughout.
We provide a whole-unit warranty and a one-year warranty on core components. Within the warranty period, for problems caused by product quality, we are responsible for replacing the relevant parts free of charge; beyond the warranty period, we continue to provide parts supply and technical support—there will be no "cutoff once out of warranty." Since it is factory-direct sales, your after-sales requests go directly into the original manufacturer's channel, for faster response and more accurate assessment. For overseas customers, we primarily rely on remote technical support (video-guided troubleshooting, shipping parts), and most issues can be resolved without an on-site visit.
We use a staged payment mechanism to protect the interests of both parties and to spare you from bearing the entire risk all at once. You pay a deposit after confirming the order and configuration, and the factory schedules production accordingly. Once the product has completed production and quality inspection, you can inspect the finished product and confirm that the parameters and appearance are correct—and we will also provide an inspection report. Only after you have confirmed your satisfaction do you pay the balance.
A commercial hyperbaric chamber should do more than sit in your facility — it should earn its place on your service menu. Oxyboss units are engineered around three commercial priorities: consistent session quality, high daily throughput and long operational life. Reinforced structures and intuitive interfaces keep operations smooth shift after shift. Backed by in-house R&D, strict QC and dedicated OEM capability, every chamber leaves our factory ready to support premium positioning, repeatable client experiences and long-term business growth.
Triangular Chamber
Maximum air pressure
Hyperbaric oxygen chamber type
Hyperbaric oxygen chamber material
Hyperbaric chamber dimensions and weight
Lying-Type Chamber
Maximum air pressure
Hyperbaric oxygen chamber type
Hyperbaric oxygen chamber material
Hyperbaric chamber dimensions and weight
Lying-Type Chamber
Maximum air pressure
Hyperbaric oxygen chamber type
Hyperbaric oxygen chamber material
Hyperbaric chamber dimensions and weight
Capsule Chamber
Maximum air pressure
Hyperbaric oxygen chamber type
Hyperbaric oxygen chamber material
Hyperbaric chamber dimensions and weight
Room Chamber
Maximum air pressure
Hyperbaric oxygen chamber type
Hyperbaric oxygen chamber material
Hyperbaric chamber dimensions and weight
Height
Length
Width
Weight
Type
Soft-Shell Triangle Chamber
Pressure
1.5 ATA
Material
Medical-grade TPU
Default color
Dark Blue
Foldable Recliner
180*62*8 cm
Dimensions
520*450*708 mm
Weight
50 kg
Total Air Flow
205 L/min
Rated Power
1200 W
Oxygen Concentration
93% ±3%
Air Flow Rate
120 L/min
Oxygen Flow Rate
10 L/min
Therapy Pressure
1.1 ~ 1.5 ATA (Adjustable)
Product Features
Dual 10-inch Color Screens
Current
5 A
Voltage
110V / 220V / 240V
Voltage
110V / 220V / 240V
Power
1200 W
Frequency
50 Hz
Current
6 A
Rated Cooling Capacity
2100 ± 5 W
Refrigerant
R22
Height
Length
Width
Weight
Size Options: We offer two standard sizes for this hyperbaric oxygen chamber: OT-S158 – 2100x800x800 mm, 18 kg; OT-S159 – 2100x900x900 mm, 21 kg.
You can also have us customize a hyperbaric oxygen chamber to fit your specific needs.
Type
Soft-Shell Lying Chamber
Pressure
1.5 ATA
Material
Medical-grade TPU
Default color
Dark Blue
Foldable Recliner
180*62*8 cm
Dimensions
520*450*708 mm
Weight
50 kg
Total Air Flow
205 L/min
Rated Power
1200 W
Oxygen Concentration
93% ±3%
Air Flow Rate
120 L/min
Oxygen Flow Rate
10 L/min
Therapy Pressure
1.1 ~ 1.5 ATA (Adjustable)
Product Features
Dual 10-inch Color Screens
Current
5 A
Voltage
110V / 220V / 240V
Voltage
110V / 220V / 240V
Power
1200 W
Frequency
50 Hz
Current
6 A
Rated Cooling Capacity
2100 ± 5 W
Refrigerant
R22
Tell us your preferred model, usage scenario, and customization needs. The Oxyboss team will provide product details, technical specifications, and a tailored quotation.
